Part # 30SC

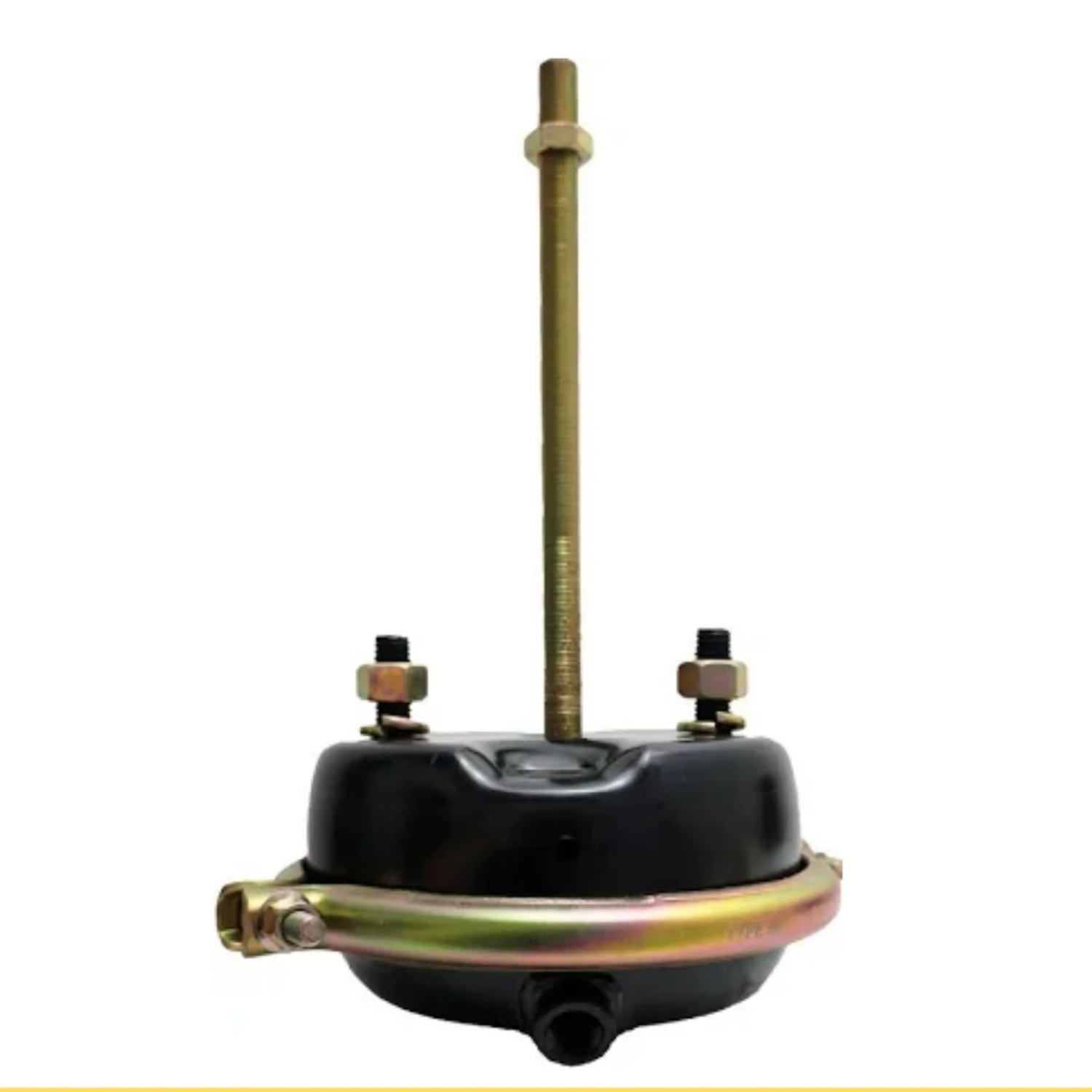

Service Brake Chamber
● 3 In Stock
UPC: 601959608851
The FL-30SC Type 30 Long Stroke Service Brake Chamber from Fleetone delivers superior braking performance for heavy-duty commercial vehicles. This premium chamber transforms compressed air energy into precise braking force for semi trucks and heavy-duty applications. Constructed with powder-coated steel housing and 10-gauge flat bottom design, it offers exceptional durability and corrosion resistance. The chamber features a 2.50" stroke length, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. With its Orange Alert® Stroke Indicator, self-piloting dust shield, and USA-engineered design, this service chamber provides reliable performance for trailers, buses, and trucks in demanding conditions
The FL-30SC Type 30 Long Stroke Service Brake Chamber from Fleetone delivers superior braking performance for heavy-duty commercial vehicles. This premium chamber transforms compressed air energy into precise braking force for semi trucks and heavy-duty applications. Constructed with powder-coated steel housing and 10-gauge flat bottom design, it offers exceptional durability and corrosion resistance.
The chamber features a 2.50" stroke length, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. With its Orange Alert® Stroke Indicator, self-piloting dust shield, and USA-engineered design, this service chamber provides reliable performance for trailers, buses, and trucks in demanding conditions
- Premium Type 30 long stroke service brake chamber featuring 2.50" stroke length for enhanced braking force
- Designed with powder-coated steel housing and resistance-welded air ports for superior corrosion resistance
- High-quality rubber diaphragm maintains flexibility in extreme temperatures down to -40°F
- Engineered and tested in the USA to meet or exceed all SAE standards with 3-year warranty coverage
- Includes caging bolt and Orange Alert® Stroke Indicator for easy brake adjustment verification
| Attribute | Value |
|---|---|
| Universal Product Code (UPC) | 601959608851 |
| Name / Brand | Part Number | Notes |
|---|---|---|
| Bendix | K025360, K025365 | Direct Interchange |
| Haldex | SC30L, SC30LCW | Direct Interchange |
| Automann | 179SC30L | Direct Interchange |
| POWER PRODUCTS | SC3000LS | Direct Interchange |
| MGM BRAKES | 1431001 | Direct Interchange |
| TSB | 30SCN3C | Direct Interchange |
| Fleetone (OEM) | FL-30SC | Direct Interchange |
| Sealco | 10900 | Direct Interchange |
| Cross Reference | EBSSC30LSC, SC30L, SC30LSC | Direct Interchange |
| Part # | Image | Product Name | Brand |
|---|---|---|---|
| 16SC |
|
Service Brake Chamber |
|
| 20SC |
|
Brake Chamber |
|
| 24SC |
|
Service Brake Chamber |
|
| 3030SC |
|
Brake Chamber |
|
| 3030LS |
|
Long Stroke Brake Chamber |
|
