Part # 3030LS
Long Stroke Brake Chamber
● 4 In Stock
UPC: 601959608875
The FL-3030LS 30/30 Long Stroke Spring Brake Chamber delivers exceptional braking performance for heavy-duty trailer applications. This premium combination chamber features a 3.00-inch long stroke design with 108.3 volume displacement at 100 PSI, providing consistent braking force in demanding conditions. Constructed with 10-gauge housing and non-pressure epoxy coating, it offers superior corrosion resistance, while the integrated dust shield prevents contamination. The reinforced mounting studs and thick steel push rod-plate exceed OE standards, ensuring reliable operation. Engineered, tooled, and tested in the USA, this chamber includes a caging bolt and comes with a comprehensive 3-year warranty for long-term dependability.
The FL-3030LS 30/30 Long Stroke Spring Brake Chamber delivers exceptional braking performance for heavy-duty trailer applications. This premium combination chamber features a 3.00-inch long stroke design with 108.3 volume displacement at 100 PSI, providing consistent braking force in demanding conditions.
Constructed with 10-gauge housing and non-pressure epoxy coating, it offers superior corrosion resistance, while the integrated dust shield prevents contamination. The reinforced mounting studs and thick steel push rod-plate exceed OE standards, ensuring reliable operation. Engineered, tooled, and tested in the USA, this chamber includes a caging bolt and comes with a comprehensive 3-year warranty for long-term dependability.
- Premium 30/30 long stroke combination spring brake with 3.00" service stroke for enhanced braking power

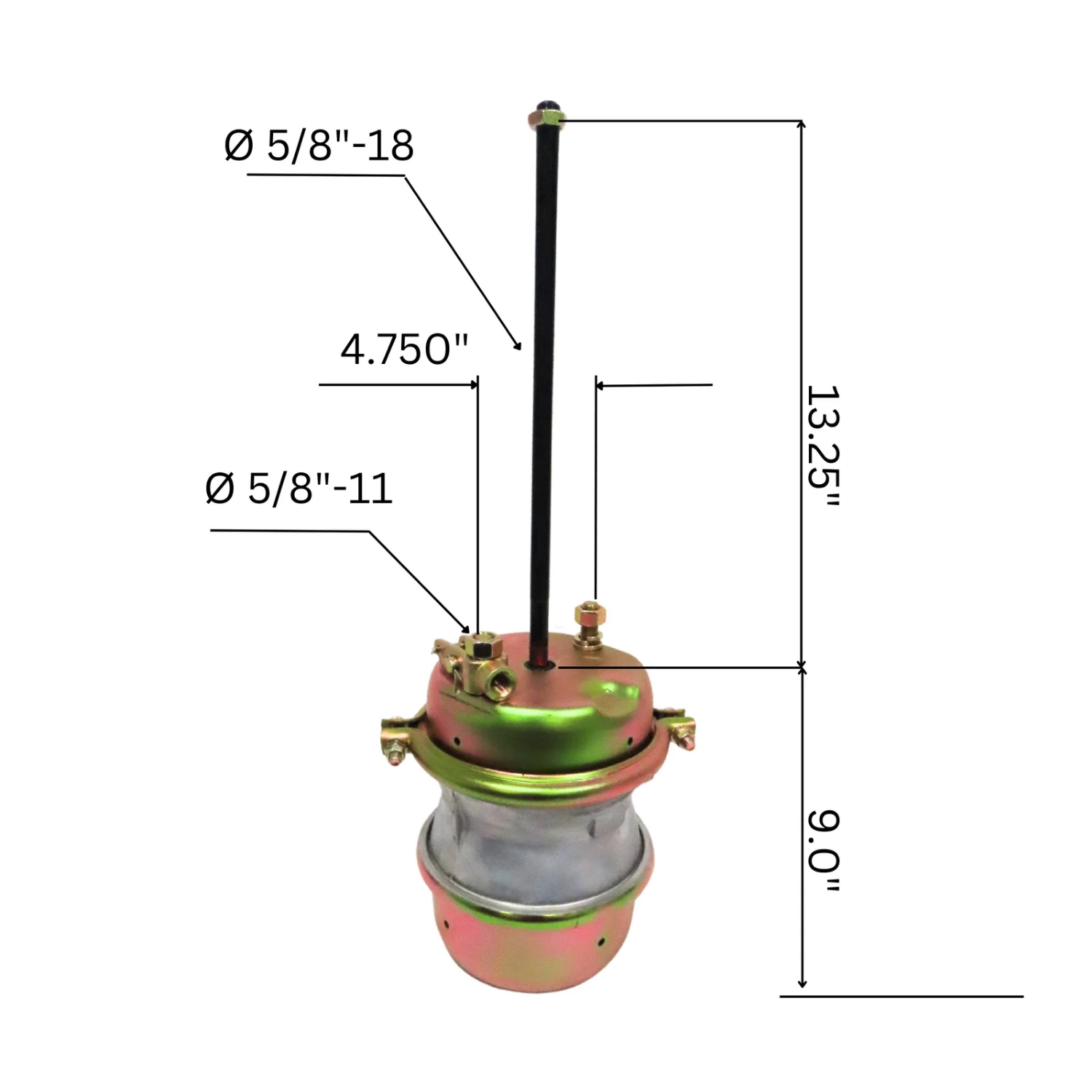

- Features 15-inch push rod with 5/8-18 threads engineered for trailer applications with drum brakes
- Advanced dust shield design prevents contamination from dirt, sand, and moisture for superior corrosion resistance
- Integrally machined center seal provides double O-ring sealing technology for extended service life
- Meets or exceeds all SAE standards with heavy-duty phosphate-coated return springs tested to 1,000,000 cycles
| Attribute | Value |
|---|---|
| Universal Product Code (UPC) | 601959608875 |
| Name / Brand | Part Number | Notes |
|---|---|---|
| OEM | 3030LS | Direct Interchange |
| Bendix | 5010435, 802541, BNAR5013841, EPRO3030ELS80, K022884, NT3030ELS80, NT3030ELS80DS, NT3030ELS80TC | Direct Interchange |
| Euclid | EBC3030CEL | Direct Interchange |
| Haldex | GC3030, GC3030L, LCP3030L | Direct Interchange |
| Automann | 179.SB3030SL | Direct Interchange |
| MGM BRAKES | 3230051, 3230051X | Direct Interchange |
| OTR | OTR3030SB-LS | Direct Interchange |
| RANGER BRAKE | BTS-3030LS, 1010456 | Direct Interchange |
| TSB | 3030TN3C, 3030TN3ULPC | Direct Interchange |
| Proline HD | PLBTS3030LS-15 | Direct Interchange |
| Pro-Par | BC-3030LS | Direct Interchange |
| Midland | GC3030L | Direct Interchange |
| AL-KO | S17204 | Direct Interchange |
| Delco-Remy | 12960 | Direct Interchange |
| New Life | 1010476 | Direct Interchange |
| Cross Reference | EBSSB3030LSS, EBSSB3030S, GC3030, GC3030L, SB3030LSS, SB3030S | Direct Interchange |
| Part # | Image | Product Name | Brand |
|---|---|---|---|
| 16SC |
|
Service Brake Chamber |
|
| 20SC |
|
Brake Chamber |
|
| 24SC |
|
Service Brake Chamber |
|
| 30SC |
|
Service Brake Chamber |
|
| 3030SC |
|
Brake Chamber |
|
Primary Category:
Air Brake & Wheel
Brand / Manufacturer:
DWT - Dependable Wear Technology
The 3030LS 30/30 Long Stroke Brake Chamber is designed for heavy-duty truck applications, offering exceptional braking performance. This long stroke air brake chamber has a 3" stroke and 13" pushrod, and it meets all SAE J2318 specifications. Built with advanced powder coating for corrosion and fatigue resistance, it features double O-ring Centerseal and a world-class diaphragm for long-lasting durability.
Weighing 22 lbs, this brake chamber comes with NPT 3/8" ports and is compatible with various replacement models, including Bendix, Haldex, and Freightliner. It’s covered by a 1-year unlimited mile warranty, ensuring reliable performance in all conditions.
