Part # SET413
SET413 Tapered Roller Wheel Bearing
● Call for Availability
UPC: 601959608776

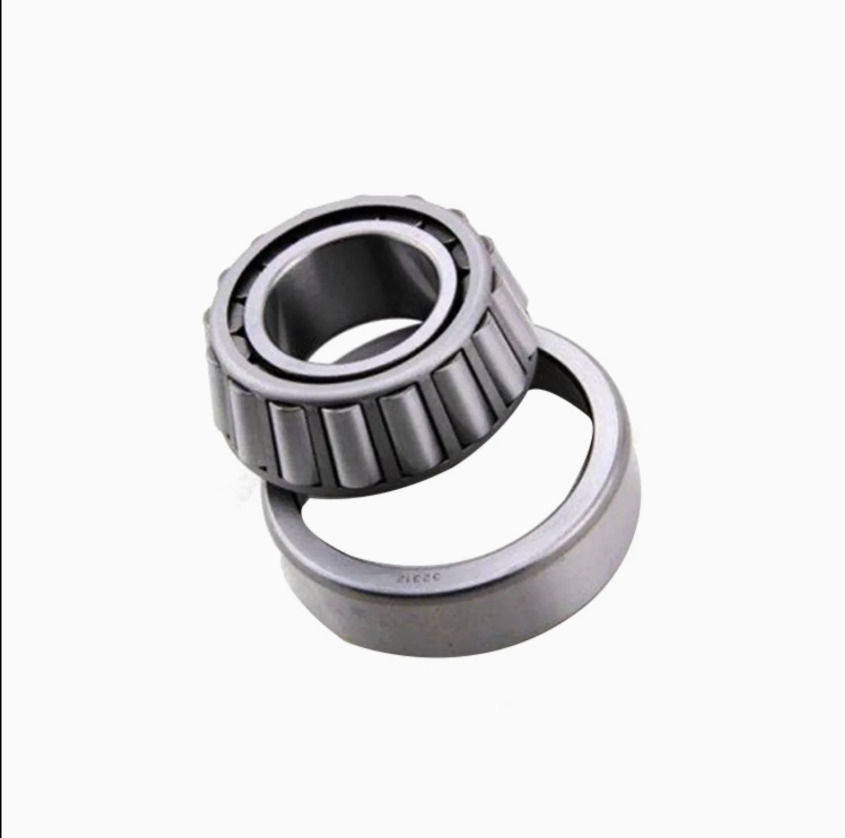

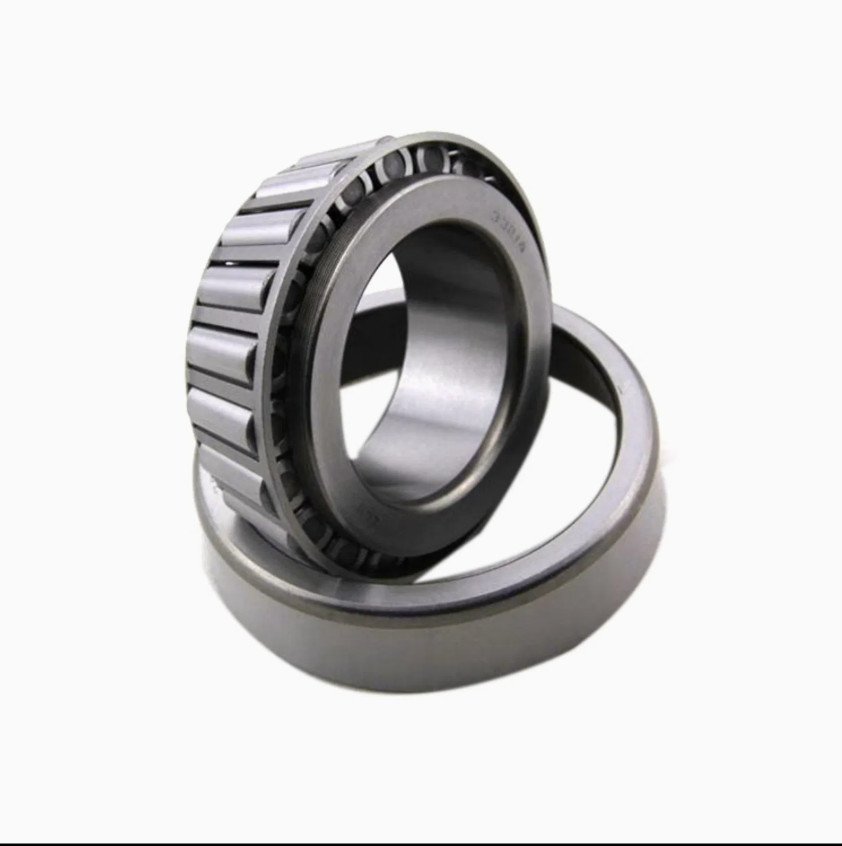

This is a heavy-duty tapered roller wheel bearing set consisting of a cup (HM212011) and cone (HM212049) assembly, featuring a 2.625-inch bore diameter, 4.813-inch outer diameter, and 1.5-inch overall width designed for commercial truck and trailer applications.
This is a heavy-duty tapered roller wheel bearing set consisting of a cup (HM212011) and cone (HM212049) assembly, featuring a 2.625-inch bore diameter, 4.813-inch outer diameter, and 1.5-inch overall width designed for commercial truck and trailer applications.
| Attribute | Value |
|---|---|
| Construction | Single-row tapered roller bearing design with internally angled raceway (cup) and externally angled inner ring with cage and rollers (cone). |
| Material | High-strength steel construction with GCr15 chrome steel composition, designed to resist fatigue failure and withstand combined radial and axial loads. |
| Precision | Manufactured to ABEC-3/ABEC-5 precision tolerances and ISO 16949 technical specifications for reliable performance. |
| Typical Application | Used in heavy-duty truck wheel assemblies including FF steer axles (inner position) and N trailer axles (outer position), accommodating both radial and axial loads simultaneously. |
| Weight | 120.00 lb |
| Universal Product Code (UPC) | 601959608776 |
| Name / Brand | Part Number | Notes |
|---|---|---|
| Timken | SET413, HM212049/HM212011 | Direct Interchange |
| SKF | SKFSET413, SET413SKF | Direct Interchange |
| Meritor | HD200 | Direct Interchange |
Primary Category:
Air Brake & Wheel
Brand / Manufacturer:
DWT - Dependable Wear Technology
