Part # 12SC

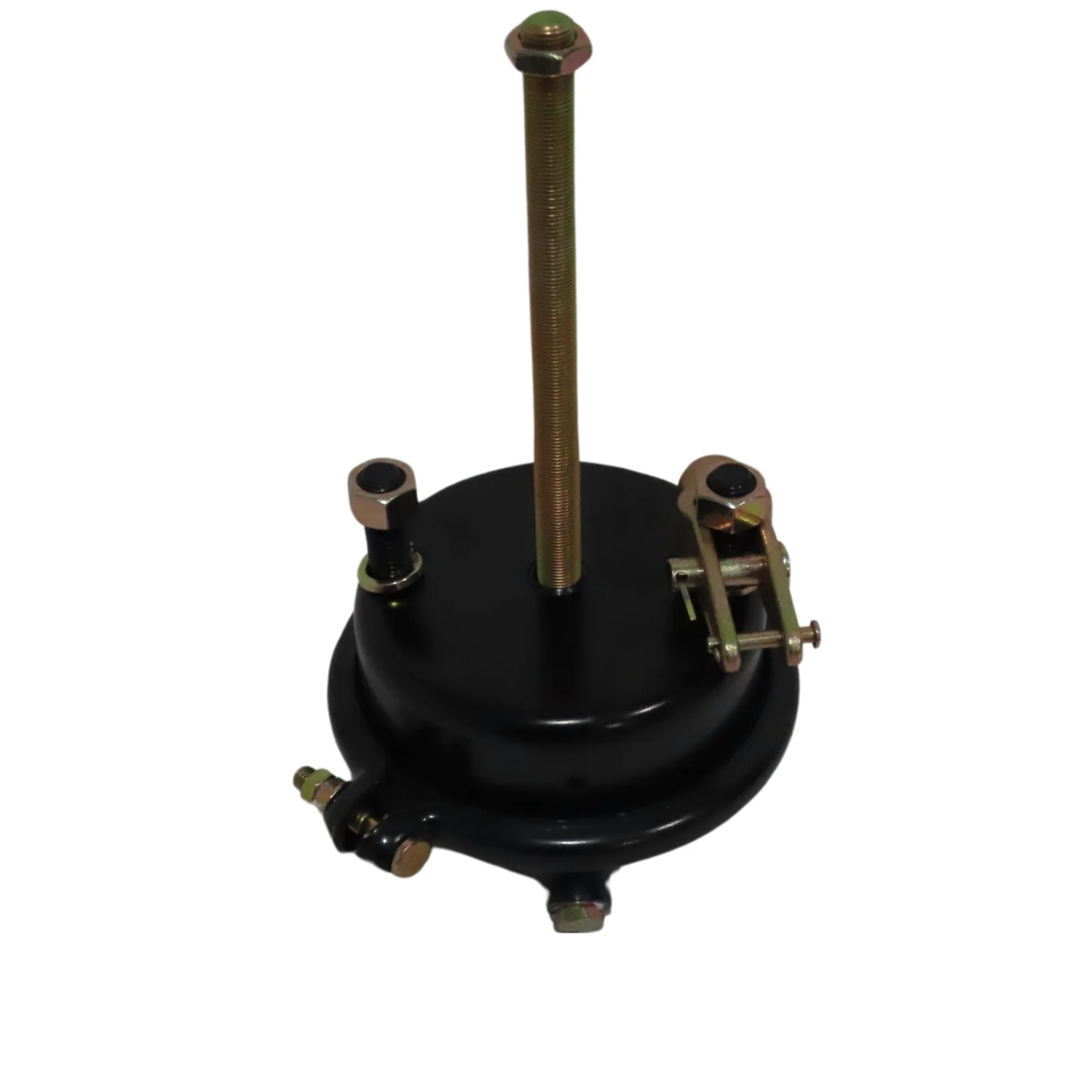

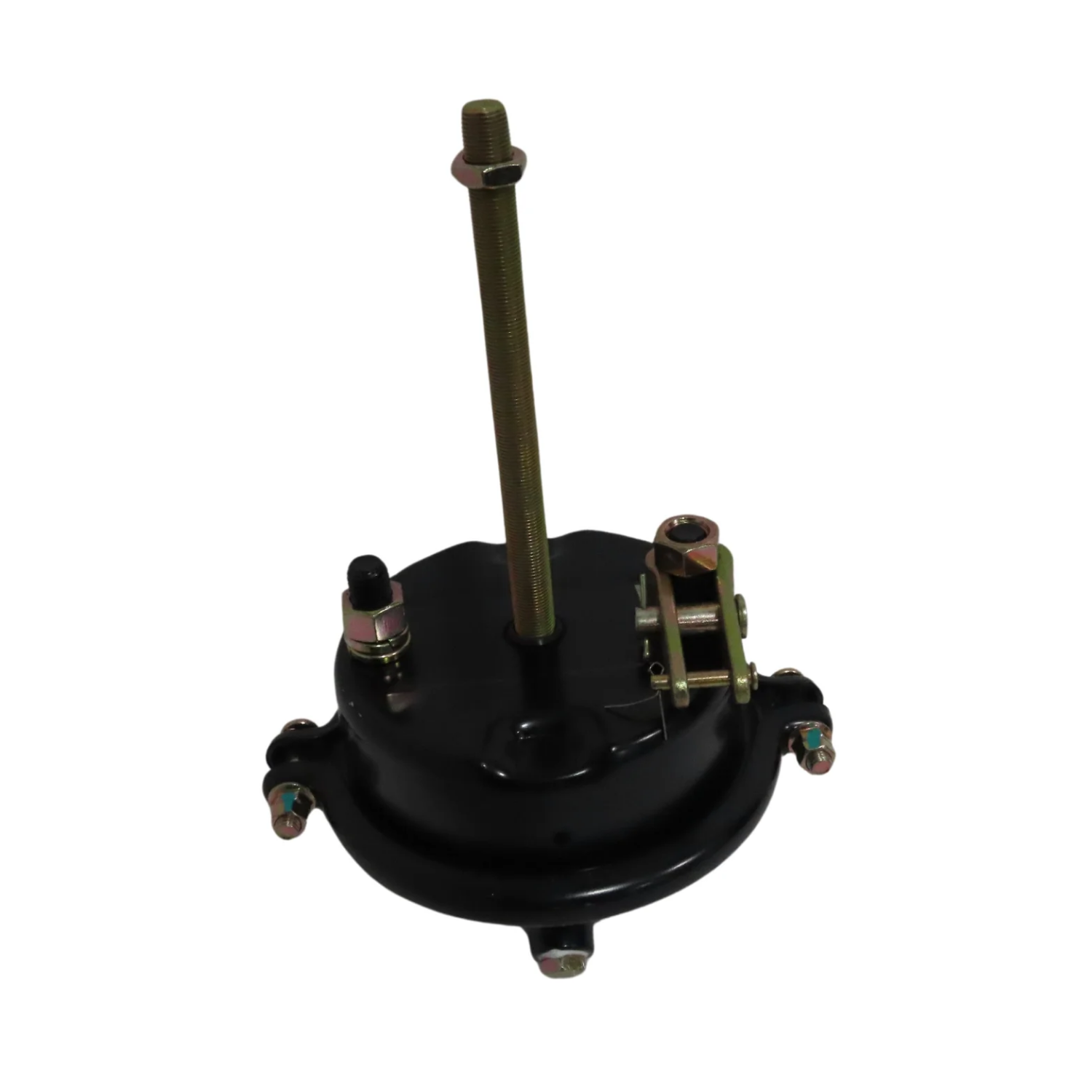

Service Brake Chamber
● 15 In Stock
UPC: 601959608882
The FL12SC Type 12 Standard Stroke Service Brake Chamber from Fleetone delivers reliable braking performance for heavy-duty commercial vehicles. This direct replacement chamber transforms compressed air energy into precise braking force for drum brake systems. Constructed with high-quality materials that exceed OEM specifications, it provides the tensile strength and durability required for safe operation in demanding conditions. The chamber features standard mounting dimensions with 4.75-inch center-to-center spacing, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. Ideal for applications across a wide variety of heavy-duty vehicles, it comes complete with all necessary mounting hardware and an 18-month warranty.
The FL12SC Type 12 Standard Stroke Service Brake Chamber from Fleetone delivers reliable braking performance for heavy-duty commercial vehicles. This direct replacement chamber transforms compressed air energy into precise braking force for drum brake systems. Constructed with high-quality materials that exceed OEM specifications, it provides the tensile strength and durability required for safe operation in demanding conditions.
The chamber features standard mounting dimensions with 4.75-inch center-to-center spacing, 5/8-18 pushrod threads, and operates at pressures up to 150 psi. Ideal for applications across a wide variety of heavy-duty vehicles, it comes complete with all necessary mounting hardware and an 18-month warranty.
- Type 12 standard stroke service brake chamber designed as a direct replacement for all standard applications
- Engineered to meet and exceed OEM requirements for heavy-duty vehicles including trailers, buses, and trucks
- Features 5/8-18 pushrod threads and 3/8-18 ports with maximum operating pressure of 150 psi
- Standard 4.75-inch mounting stud spacing with 5/8-11 threads for universal compatibility
- Complete package includes mounting hardware and clevis assembly for straightforward installation
| Attribute | Value |
|---|---|
| Universal Product Code (UPC) | 601959608882 |
| Name / Brand | Part Number | Notes |
|---|---|---|
| OEM | 12SC | Direct Interchange |
| Freightliner | HDX SC12 | Direct Interchange |
| Bendix | 274420, 288795, 288796, 5007117, 5007117N, 800822, 800822BXW | Direct Interchange |
| Euclid | E-12S, EBC12S | Direct Interchange |
| Haldex | 1200001, KN-36120, KN36012, MA-36120, SC12, SC1200 | Direct Interchange |
| Automann | 179.SC12 | Direct Interchange |
| POWER PRODUCTS | SC1200 | Direct Interchange |
| LUK | 05112 | Direct Interchange |
| MGM BRAKES | 1412001, C12 | Direct Interchange |
| RANGER BRAKE | HD12S, SC1200, T12 | Direct Interchange |
| TSB | 12SCN0C | Direct Interchange |
| BATCO | 05-112 | Direct Interchange |
| LELAND BRAKE & WHEEL PARTS | L1200SC | Direct Interchange |
| PAI | 0214-100 | Direct Interchange |
| Velvac | 30013 | Direct Interchange |
| Rockwell International | R870012S | Direct Interchange |
| Genuine | S-9812, S9812 | Direct Interchange |
| ACDelco | 1200 | Direct Interchange |
| Anchor | 10100 | Direct Interchange |
| Centramatic | 800822 | Direct Interchange |
| Centric Parts | 05112 | Direct Interchange |
| Engine Control Systems | 1200 | Direct Interchange |
| Orion Safety | 30013 | Direct Interchange |
| Orscheln Co | 10100 | Direct Interchange |
| Parts Distribution | T12 | Direct Interchange |
| Perkins | 7409674 | Direct Interchange |
| ProLine HD Truck Parts | PLBSC-12 | Direct Interchange |
| TCT | 15012, 15612 | Direct Interchange |
| Cross Reference | 1412001, EBSSC12C, MBKN36120, MG1412001, SC12, SC12C | Direct Interchange |
| Part # | Image | Product Name | Brand |
|---|---|---|---|
| 16SC |
|
Service Brake Chamber |
|
| 20SC |
|
Brake Chamber |
|
| 24SC |
|
Service Brake Chamber |
|
| 30SC |
|
Service Brake Chamber |
|
| 3030SC |
|
Brake Chamber |
|
Primary Category:
Air Brake & Wheel
Brand / Manufacturer:
DWT - Dependable Wear Technology
Stay prepared for the road ahead with the Fleetone 12SC Standard Stroke Service Brake Chamber. Designed with high-quality materials, this brake chamber exceeds OEM standards to provide reliable and consistent braking performance in trucks and trailers. It efficiently converts compressed air into the precise mechanical force needed to apply your vehicle's brakes, ensuring optimal stopping power.
The 12SC chamber is ideal for heavy-duty applications, offering the strength and durability required to handle the demands of large vehicles. Whether on long hauls or in daily operations, this brake chamber is built to deliver dependable performance. Its innovative design ensures that you maintain the necessary brake pressure, keeping your truck or trailer safe on the road.
