Part # DB-1369HD

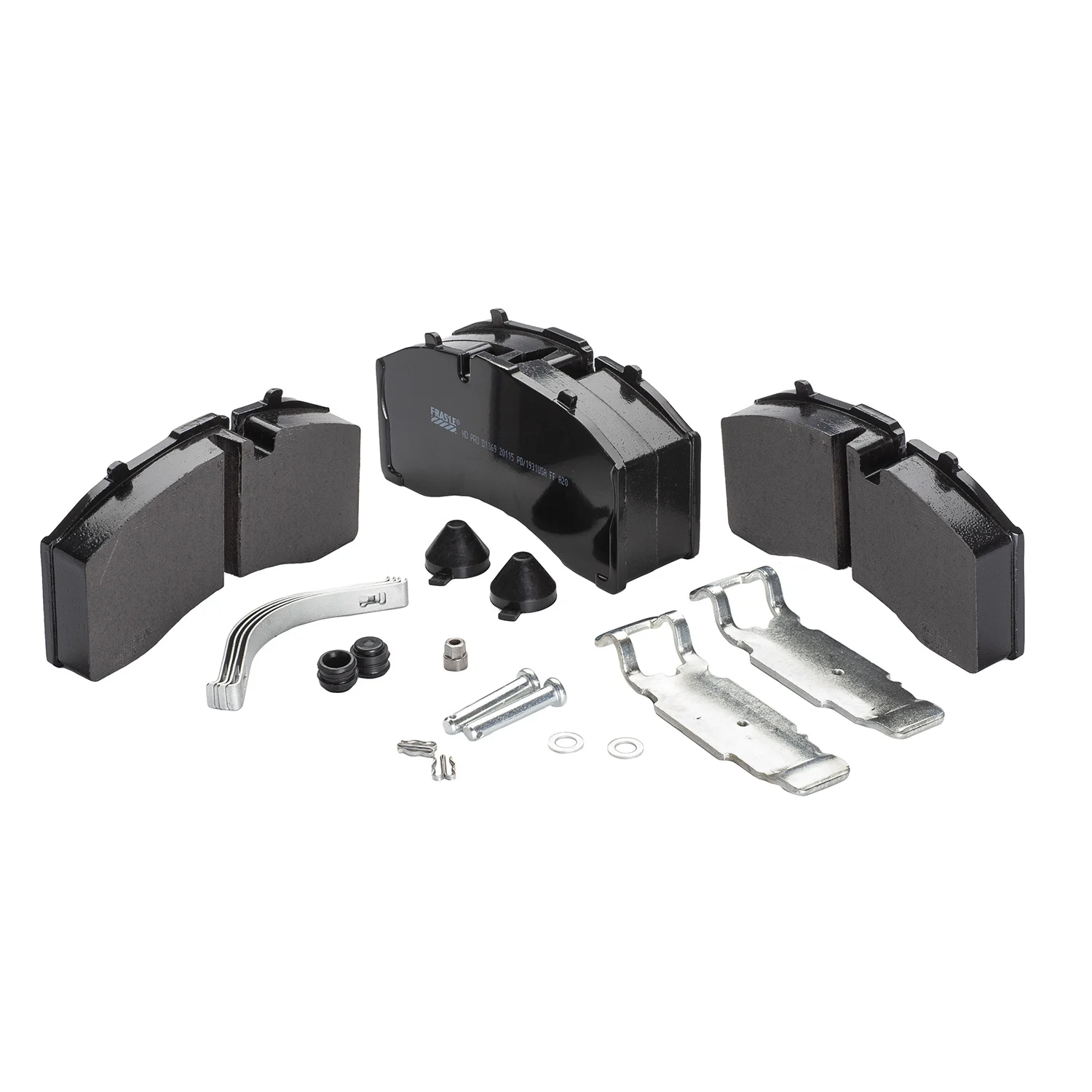

Air Disc Brake Pad Bendix Style
● Call for Availability
UPC: 601959608110
This is a heavy-duty air disc brake pad set designed for Bendix ADB22X and Knorr SK7 applications, featuring FMSI specification D1369-8479 with copper-free semi-metallic friction material measuring 210mm x 108mm x 30mm, specifically engineered for linehaul and on-highway commercial vehicle operations requiring maximum thermal performance and extended wear life.
This is a heavy-duty air disc brake pad set designed for Bendix ADB22X and Knorr SK7 applications, featuring FMSI specification D1369-8479 with copper-free semi-metallic friction material measuring 210mm x 108mm x 30mm, specifically engineered for linehaul and on-highway commercial vehicle operations requiring maximum thermal performance and extended wear life.
| Attribute | Value |
|---|---|
| Construction | Positive molded air disc brake pad with advanced mechanical retention system (MRS) featuring integrally molded friction material bonded to powder-coated steel backing plate. |
| Material | Asbestos-free, copper-free semi-metallic friction material with graphite-metallic composition designed for superior thermal stability and rotor-friendly performance. |
| Compliance | FMVSS-121 and ECE R-90 certified, meets N-Level copper compliance standards with operating temperature range from -40°C to +650°C. |
| Typical Application | Compatible with Bendix ADB22X, ADB22X-LT, and Knorr-Bremse SK7 air disc brake systems on heavy-duty trucks, trailers, and commercial vehicles including Freightliner, Kenworth, Mack, and Peterbilt models. |
| Universal Product Code (UPC) | 601959608110 |
| Name / Brand | Part Number | Notes |
|---|---|---|
| Meritor | MMD1369AF, MMD1369AG, MMD1369DD | Direct Interchange |
| Stemco | AD1369L, AD1369LHP | Direct Interchange |
| Bendix | K070796, K129276, K182235, 802078 | Direct Interchange |
| Haldex | MPBD1369HD, MPBD1369CV, MPBD1369XT | Direct Interchange |
| Automann | 141.D1369FS, 141.D1369SD, AMR2209N | Direct Interchange |
| Hendrickson | S291522, S-29152 | Direct Interchange |
| Cross Reference | 76AR692G, 120.86027, 29152-17, 29158, 56094, 56094PK, 76692, 76693, 76694, 802078, 802083, 802569, 1387439, 2915217, 10023879, 10025445, 10037298, 24962526, 80430001, 80430001-T, 321801319ES, 432045000, A576, ADB045MMS, ADR180456, CS DWTR0004, D1369, D1369-HP, D1369HP, F, K012739, K070796, K109113, K129272, K129276, K297277, M44D76692, RH001, S-29152, S-29152-2, S291522, SSR922, TVD1369-HP, TV D1369-HP, WP158S2 | Direct Interchange |
Primary Category:
Air Brake & Wheel
Brand / Manufacturer:
DWT - Dependable Wear Technology
