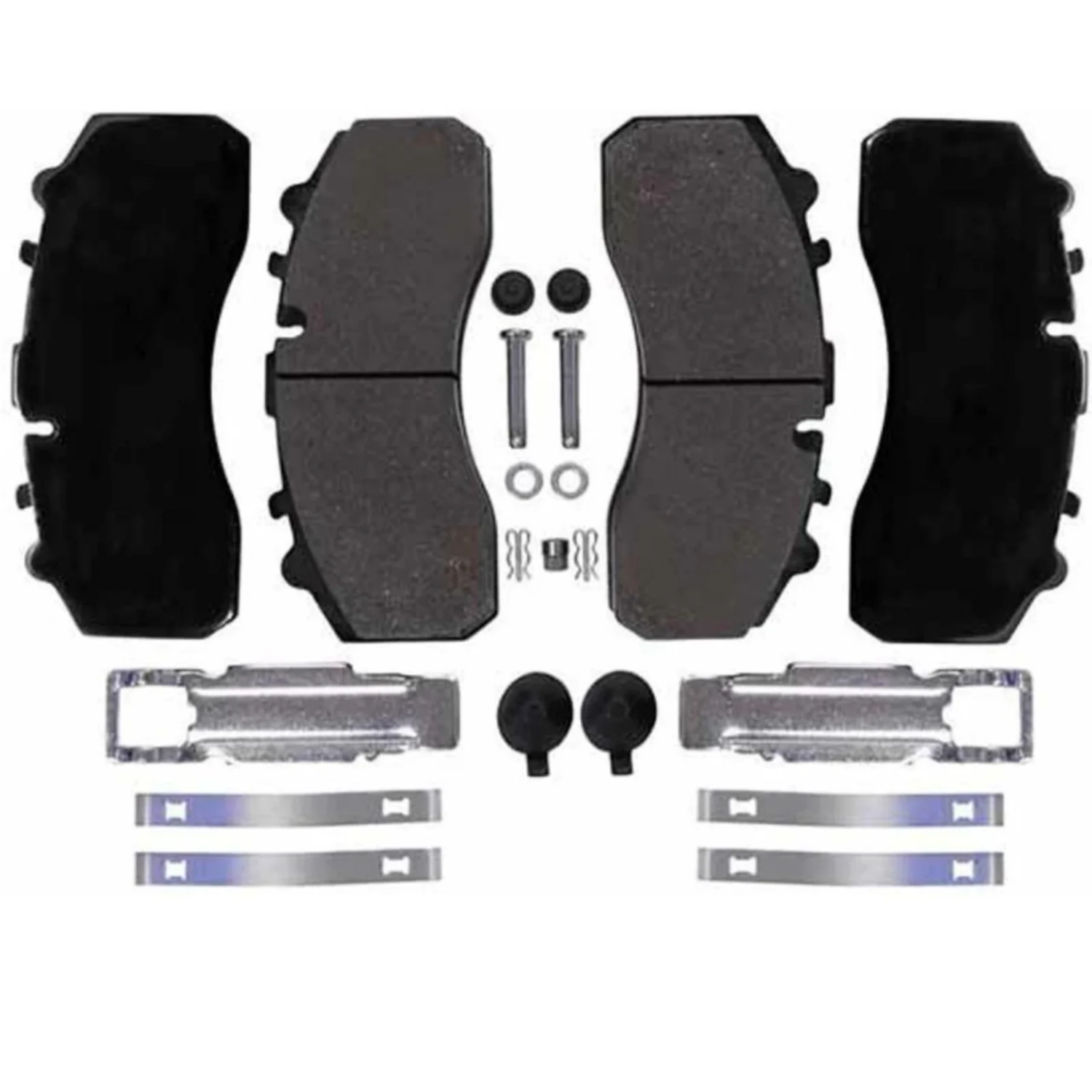

1203HD Air Disc Brake Pad Bendix Style
This is a heavy-duty air disc brake pad set designed for Bendix-style applications, featuring FMSI specification D1203-8323 with carbon metallic friction material measuring 289mm x 108mm x 30mm, specifically engineered for severe duty commercial vehicle operations including line haul and vocational applications.
42 in stock
| Construction | Positive molded air disc brake pad with mechanical retention system featuring wire mesh welded to high-grade steel backing plate for secure bonding throughout pad life. |
|---|---|
| Material | Asbestos-free carbon metallic friction material with low resin formula designed for moderate torque and excellent wear characteristics in severe duty applications. |
| Compliance | FMVSS-121 certified and meets ECE R-90 European standards for commercial vehicle brake pad performance and safety. |
| Typical Application | Compatible with Bendix/Knorr-Bremse SB7 and SN7 air disc brake systems on heavy-duty trucks, trailers, and commercial vehicles with twin-piston calipers. |
Bendix Style Heavy Duty Brake Pads are engineered for demanding conditions, offering superior durability and performance for vehicles carrying heavy loads, towing, or frequently engaging in intense braking. Featuring an exclusive INSULAYER for high-temperature efficiency, these pads ensure longer life and enhanced rotor protection.
The Blue Titanium Stripe eliminates the need for bedding-in, providing instant positive pedal feel from the first stop. Equipped with Noise Absorbing Shims, they reduce vibration and noise for a quieter ride. With a wide range of applications, Bendix pads meet OE logbook servicing standards, delivering reliable braking power and extended rotor life even in tough environments.
| Manufacturer | Part number | Notes |
|---|---|---|
| Bendix | 802593, K109249, K046771K50 | |
| Euclid | MMD1203AF | |
| Haldex | MPBD1203HD, MPBD1203CV, MPBD1203XT | |
| Automann | 141.D1203FS, 141.D1203SD |
