Part # 172016

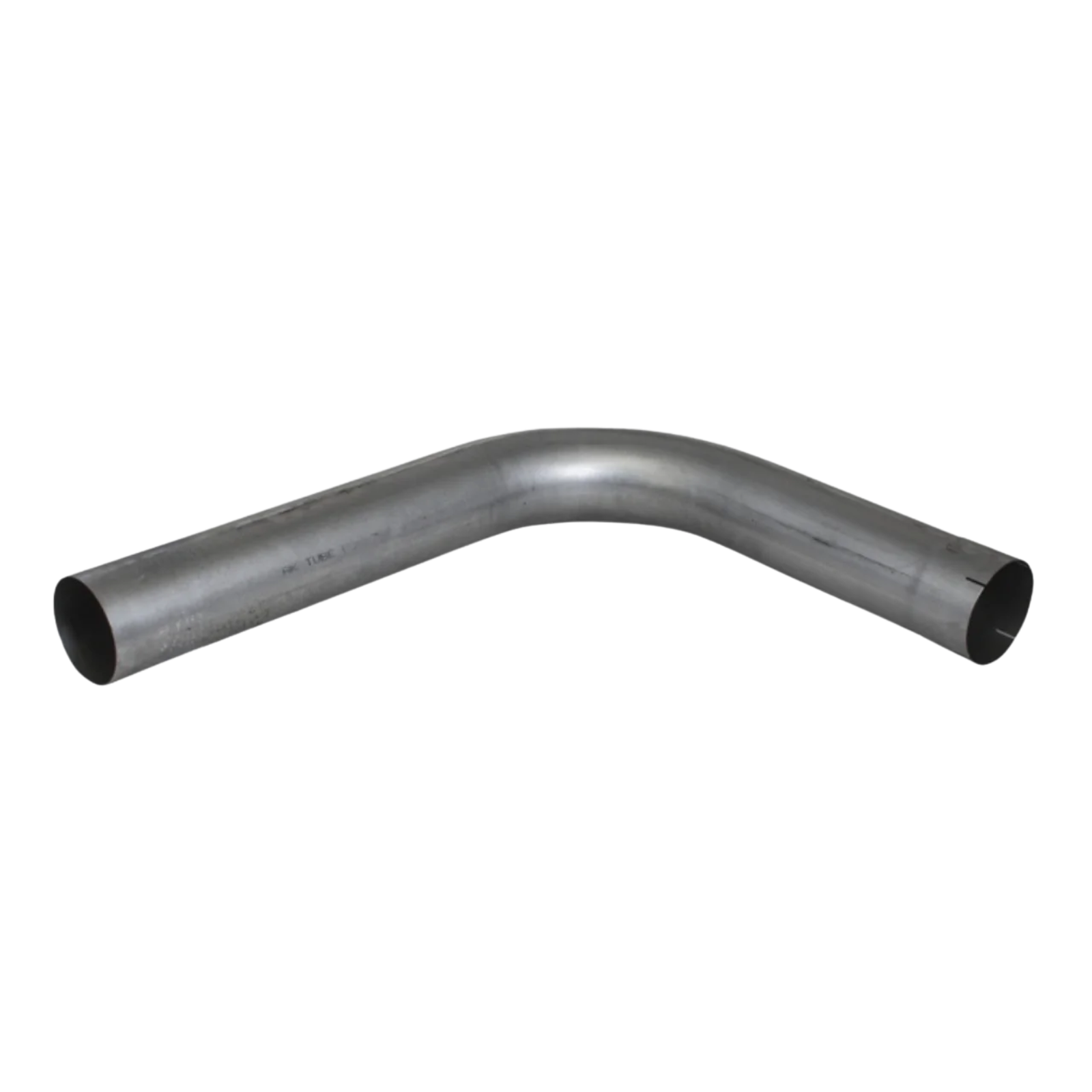

90° Exhaust Elbow Diameter:5'' Leg Length(A&B):15'' Leg Length(R):10''

● 10 In Stock

UPC: 601961388987

This is a universal 90-degree exhaust elbow featuring 5-inch diameter with maximum 15-inch leg lengths on both sides and an extended 10-inch center line radius. The aluminized steel construction provides excellent corrosion resistance while the mandrel-bent design maintains consistent internal diameter throughout the bend for optimal exhaust flow. Read more

Product Overview

This is a universal 90-degree exhaust elbow featuring 5-inch diameter with maximum 15-inch leg lengths on both sides and an extended 10-inch center line radius. The aluminized steel construction provides excellent corrosion resistance while the mandrel-bent design maintains consistent internal diameter throughout the bend for optimal exhaust flow. Designed for OD-OD connections in heavy-duty exhaust applications requiring maximum clearance and reach.

Specifications 5 Attributes

Attribute	Value
Construction	Mandrel-bent 90-degree elbow with uniform wall thickness providing smooth internal flow characteristics and structural integrity under high-temperature conditions.​
Material	Aluminized steel construction offering superior corrosion resistance and extended service life in harsh exhaust environments.​
Design	Precision-formed with extended 10-inch center line radius ensuring optimal exhaust flow with minimal back pressure, featuring maximum 15-inch leg lengths for extensive installation flexibility.​
Application	Universal design suitable for heavy-duty truck exhaust systems, stack installations, and custom exhaust fabrication requiring 90-degree directional changes with maximum reach.​
Universal Product Code (UPC)	601961388987

Cross Reference 3 Interchanges

Name / Brand	Part Number	Notes
Mack	583989107C (OD-OD)	Direct Interchange
Donaldson	P207346 (OD-OD)	Direct Interchange
Nelson Global	89107A (OD-OD Aluminized), 89107C (OD-OD Chrome)	Direct Interchange
